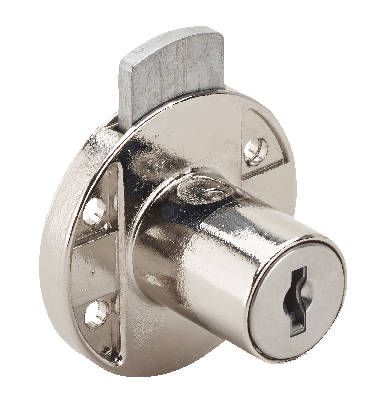

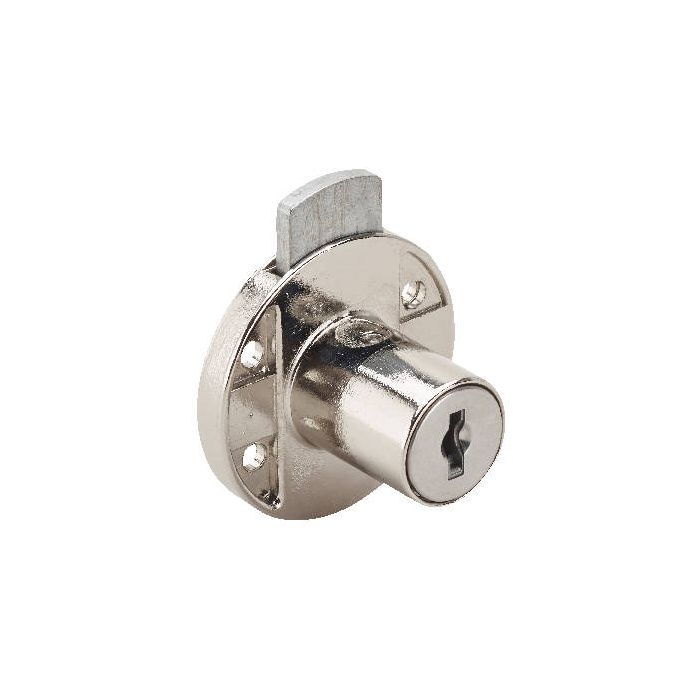

Ronis France 18600-01 Round Drawer Lock

Ronis 18600-01 Round Drawer Lock is supplied under the FM Master Key Series in a Bright Nickel Finish. It has 4 x 3.2mm fixing holes for a secure fit, is suitable for use on drawers up to 22mm thick, is supplied with 2 keys and has a 9m bolt throw. The key operates the cylinder 180º clockwise to unlock and can be removed in both the locked and unlocked positions.

Features
Nozzle Length - 22mm
Nozzle Diameter - 18mm
Body Width - 40mm
Cam - Bolt through 9mm
Vertical Screw Fixing
Suitable for wooden Furniuture
400 Locking Combinations
Key Supplied - 2
Key Series -FM001 - FM400
Master Key -PM01
